Model A11-B1- C2-D5-E1L-E52
-> 52" load height
-> 10" x 3.5" - 4 ply pneumatic wheels
-> Wide 18" x 7.5" noseplate
-> Stairclimbers
-> Weight 29 lbs.
-> Our most popular model

Model A2-B1-C1-D11
-> 44" load height
-> 8" x 2-1/8" Balloon cushion rubber wheels
-> Top U brace adds strength and rigidty
-> Standard 14" x 7.5 noseplate
-> Weight 20 lbs.

A7-B1-C1-D11
-> 52" load height
-> 8" x 2-1/8" Balloon cushion rubber wheels
-> Standard 14" x 7.5" noseplate
-> Weight 22 lbs.

Model A11-B1-C2- D10-E1L-E60
-> 60" load height
-> 10" x 2-1/8" Balloon cushion rubber wheels
-> Wide 18" x 7.5" noseplate
-> Stairclimbers
-> Weight 27 lbs.

A1
Standard Loop50" Overall

A2
Standard Loop 50" Overall w/U brace

A7
Staight Loop 52" Overall Vertical Grip at 52"

A11
Standard Double Grip 48' Overall Includes U Brace

A12
Standard Loop 52' Overall Single grip

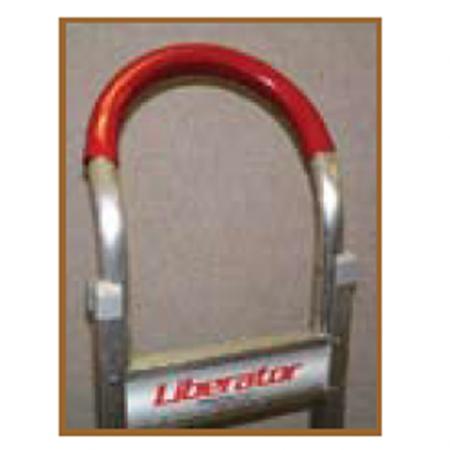

A13
Standard Loop w/Comfort Sleeve 50' Overall

B1
Standard Straight Back

B2
Lattice Back with 1 strap

B3
Lattice Back with 2 straps

B4
Curved Back with 1 strap All Aluminum

B5
Curved Back All Aluminum Beer/Beverage Use

B6
Combination Back 1 curved/ 2 straight

B7
Combination Back 2 curved/ 1 straight

C1
Extruded Aluminum 14" x 7 1/2" Recessed Heel

C2
Extruded Aluminum 18" x 7 1/2" Recessed Heel w/cutouts

C14
Extruded Aluminum 18" x 12" Front Mount Solid

C16
Extruded Aluminum 14" x 7 1/2" Front Mount Solid

C17
Extruded Aluminum 18" x 7 1/2" Front Mount Solid

CA1
14" x 7 1/2" Recessed Heel w/cutouts Cast Aluminum

CA2
18" x 7 1/2" Recessed Heel w/cutouts Cast Aluminum

D2
10" x 2 1/2" Semi-pneumatic 1 pc. Plastic hub 500 lb. Capacity

D5
10" x 3 1/2" 4-ply pneumatic 2 pc. Steel hub 600 lb. Capacity

D10
10" x 2 1/8" Balloon Cushion Polyolefin hub 600 lb. Capacity

D11
8" x 2 1/8" Balloon Cushion Polyolefin hub 600 lb. Capacity

Revolutionary, high-strength extruded aluminum stair climber with a 1/2" thick heavy-duty wear strip

E1L - 15" Long

Heavy-duty formed frame extensions.

Part
E45 - 45"
E52 - 52"
E55 - 55"
E60 - 60"
E68 - 68"

Full Channel Extruded
E2F or E2R — 20"
E3F or E3R — 30"

Takes the load off the operator. Wheels swivel for maneuverability in tight places. Folds up and out of the way when not in use.

Finally, a cost effective, lightweight brake system that works. Our design offers a lifetime of service and virtually no maintenance. Modular construction allows for fast, easy replacement of damaged components.

-> C ustom designed brake always puts equal pressure on both wheels, even in wet conditions.
